SKU: SG4211R-0800

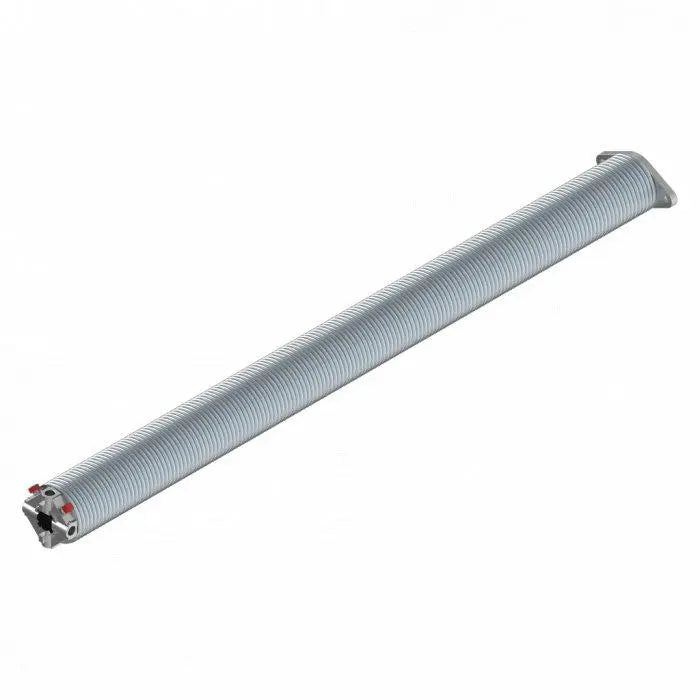

Torsion spring 1" shaft 67×5.5×800 mm RHW | Powder-coated grey | 2P

Name: Torsion spring 1" shaft 67×5.5×800 mm RHW | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG4211R-0800
Price: 75.21 EUR
Availability: InStock

€75,21

Tax included Shipping calculated at checkout.

Description

Torsion spring 1" shaft 67×5.5×800 mm RHW | Powder-coated grey | 2P

The torsion spring 67×5.5×800 mm RHW is a robust, industrial-grade spring for demanding sectional door systems. It is powder-coated, thermally treated and coated with a wax film on the inside – for perfect gate operation, long service life and maximum occupational safety.

🔧 Technical specifications

Article No.:
SG4211R-0800

Area of application:
IND & RES

ERA-RES:
ERA-RES

Length:
800 mm

Inner diameter:
67 mm

Wire thickness:
5.5 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Weight:
6.15 kg

Surface:
Powder coating – corrosion-resistant

Internal treatment:
Wax film – low friction & long-lasting

Material treatment:
After winding, oven-unloaded, blasted & thermally treated

Version:
Pre-assembled with 2 spring heads (2P)

Color:
Gray

Unit:
Piece

💪 Advantages & Features

RHW – right-hand wound, ideal for the left side of the gate (inside view).
5.5 mm wire thickness for precise spring action on medium-sized gates.
Powder-coated finish for excellent corrosion protection.
Interior with wax coating – quieter, smoother gate operation.
Thermally and blasted treated for maximum stability.
2P pre-assembled – saves assembly time, reduces potential sources of error.
High security & professional quality – Tormeister 24 Standard.

⚙️ Application & Assembly

The 67×5.5×800 mm RHW torsion spring is used for weight compensation on sectional doors. RHW means right-hand wound – this spring is usually mounted on the left side of the gate (inside view). It ensures even power distribution, smooth operation and relieves stress on the gate mechanism and the drive.

Safety Notice: Working on torsion springs is extremely dangerous. The enormous preload can lead to serious injuries. Replacement and installation may only be carried out by trained specialists using PPE and special clamping tools. Safety is the top priority for goalkeeper 24.

🏁 Practical example

A faulty spring system was replaced in an industrial building. The new The 67×5.5×800 mm RHW immediately ensured smooth gate operation and reduced motor load. and increased operational reliability – ideal for regular to intensive use.

🔗 Relevant categories & accessories

❓ FAQ

For which gates is this spring suitable?

For sectional doors in industrial and residential applications (IND & RES) with a 1" shaft.

What does RHW mean?

RHW = right-hand wound → installation usually on the left side of the gate (interior view).

Can I install this spring myself?

No. Due to the high voltage, there is a risk of death. Only qualified personnel are permitted to carry out this work.

Why is the inside of the spring waxed?

The wax film ensures quiet operation, reduced friction and extended service life.

🛒 Order industrial springs now

Order the torsion spring 67×5.5×800 mm RHW – durable, precise and safe for sectional door systems.
